HYD. TRAILED DISC HARROW

HYD. TRAILED DISC HARROW

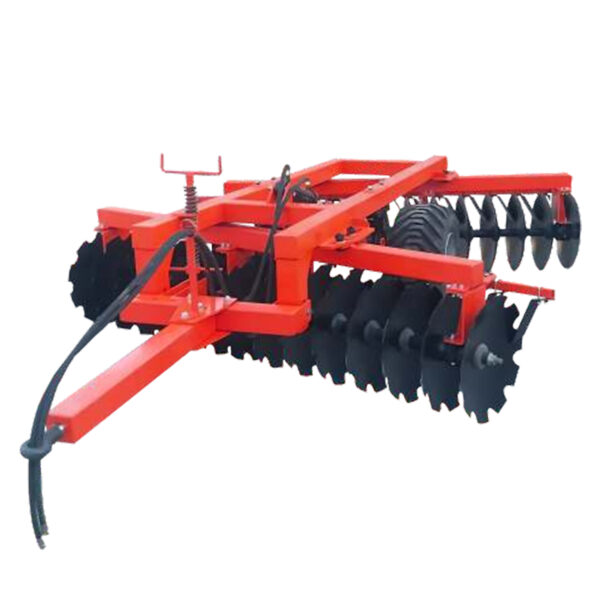

KRITTVO HYDRAULIC TRAILED DISC HARROW is farming equipment with concave
cutting discs attached to a hydraulic frame that is pulled behind a tractor. It prepares soil
before planting by breaking it up and loosening it. The hydraulic system makes it easy to
maneuver and lift the equipment, and it is commonly used for preparing seed beds for
crops like wheat, corn, and soybeans.

SKU: 16-9 Categories: Rotary Tiller, ROTARY TILLERS

Description

Description

Salient Features

Easy transportation on the tires using the hydraulic system, making it convenient to move the implement.
High-quality boron steel discs with a hardness of 48-52 HRC, ensuring durability and effective soil penetration.
Sturdy design and weight, enabling efficient breaking up of heavy clods.
360° rotating drawbar hook, allowing for easy assembly.

Model	KI-HDH-7X7-24BS	KI-HDH-8X8-24BS	KI-HDH-9X9-25BS
Size	7×7	8×8	9×9
Frame	90×10 mm	90×10 mm	100×10 mm
Pipe	Extra heavy duty 65 mm OD round pipe	Extra heavy duty 65 mm OD round pipe	Extra heavy duty 75 mm OD round pipe
Spool	Extra heavy duty	Extra heavy duty	Extra heavy duty
Disc	24″	24″	25″
No. of Discs	14	16	18
Type of Disc	Front Notched & Rear Plain	Front Notched & Rear Plain	Front Notched & Rear
Joining Plate	25 mm	25 mm	25 mm
Hydraulic Jack	Heavy Duty	Heavy Duty	Heavy Duty
Approx. Weight	700 Kgs	800 Kgs	900 Kgs
